DM-365 Automatic Edge Banding Machine
DM-365 Automatic Edge Banding Machine

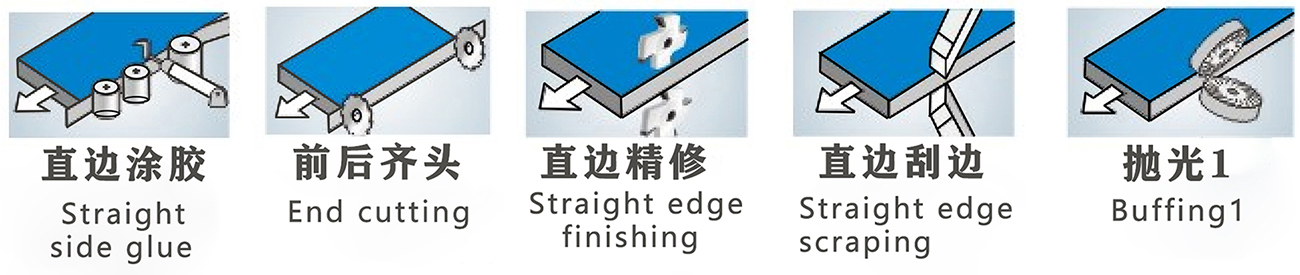

Function introduction:
Gluing;
End trimming;
Fine trimming;
Scraping;
Buffing;
Gluing;
End trimming;
Fine trimming;
Scraping;
Buffing;
Technical parameter:
| Model | DM-365 |
| Motor power | 9.0kw |
| Overall size | 2950×750×1250mm |
| Feed speed | 16m/min |
| Panel thickness | 10-60(mm) |
| Edge thickness | 0.4-3(mm) |
| Panel length | ≥120mm |
| Panel width | ≥80mm |
| Working air pressure | 0.6mpa |
| Voltage | 380 V 50Hz 3Phase (Optional) |
| Weight | 800kg |
| Configuration Table | |
| Pre-milling | × |
| Gluing | √ |
| End trimming | √ |
| Rough trimming | × |
| Fine trimming | √ |
| Profiling unit | × |
| Scraping | √ |
| Buffing | √ |
| Grooving | × |
Equipment workflow:
