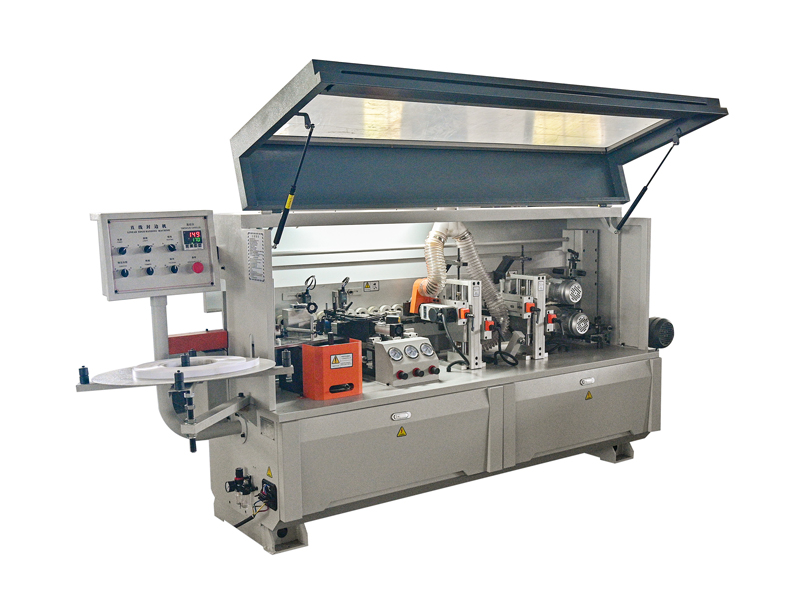

DM-501 Automatic Edge Banding Machine
DM-501 Automatic Edge Banding Machine
Function introduction:
Gluing;
Fine trimming;
Scraping;
Buffing;
Gluing;
Fine trimming;
Scraping;
Buffing;
Technical parameter:
| Model | DM-501 |
| Motor power | 6.2kw |
| Overall size | 2800×1100×1600mm |
| Feed speed | 12m/min |
| Panel thickness | 10-60(mm) |
| Edge thickness | 0.4-3(mm) |
| Panel width | ≥80mm |
| Working pressure | 6kg |
| Weight | 800kg |
| Configuration Table | |
| Pre-milling | × |
| Gluing | √ |
| End trimming | × |
| Rough trimming | × |
| Fine trimming | √ |
| Profiling unit | × |
| Scraping | √ |
| Buffing | √ |
| Grooving | × |

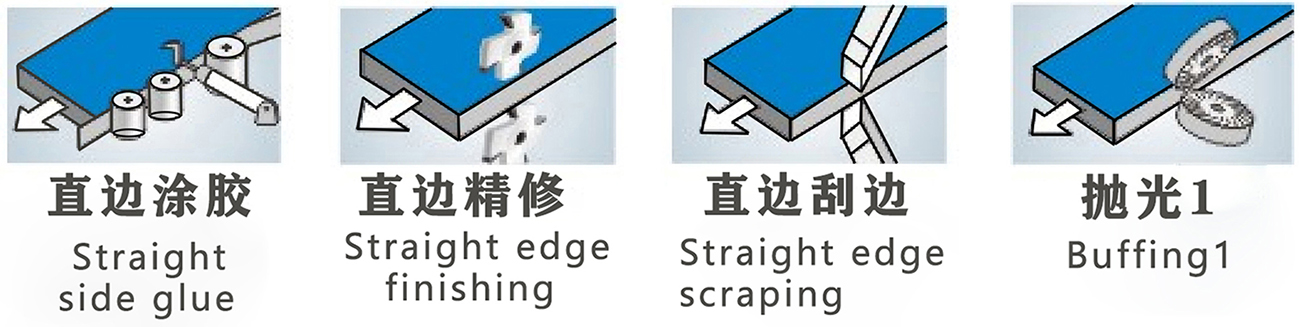

Equipment workflow:
