DM-SMV8D Panel Saw
DM-SMV8D Panel Saw
Overall dimensions: 3250mm×3390mm×870mm
Dimension of sliding table: 3200mm×370mm
Gross cut capacity: 3200mm
Width of cut between saw blade and rip fence: 1250mm
Saw blade diameter: φ300mm(φ250-φ315)
Height of cut: 80mm
Dimension of sliding table: 3200mm×370mm
Gross cut capacity: 3200mm
Width of cut between saw blade and rip fence: 1250mm
Saw blade diameter: φ300mm(φ250-φ315)
Height of cut: 80mm
Technical parameter:
| Dimension of sliding table | 3200mm×370mm |
| Gross cut capacity | 3200(mm) |
| Width of cut between saw blade and rip fence | 1250(mm) |
| Saw blade diameter | φ300mm(φ250-φ315) |
| Height of cut | 80(mm) |
| Diameter of guide shaft spindle | 55(mm) |
| Speed of main saw spindle | 4000/6000rpm |
| Main spindle diameter | φ30(mm) |
| Tilting saw blade | 0-45° |
| Main motor | 5.5kw |
| Scoring saw blade diameter | φ120(mm) |
| Speed of scoring saw blade | 8000r/min |
| Scoring spindle diameter | φ20(mm) |
| Scoring motor | 0.75kw |
| Net weight | 645kg |
| Weight | 765kg |
| Overall dimensions | 3250×3390×870(mm) |

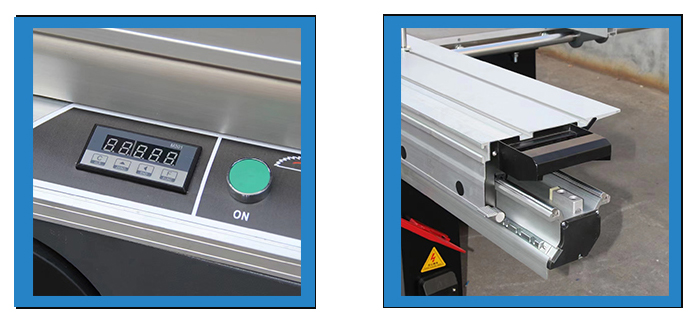

Partial detail picture of product:
