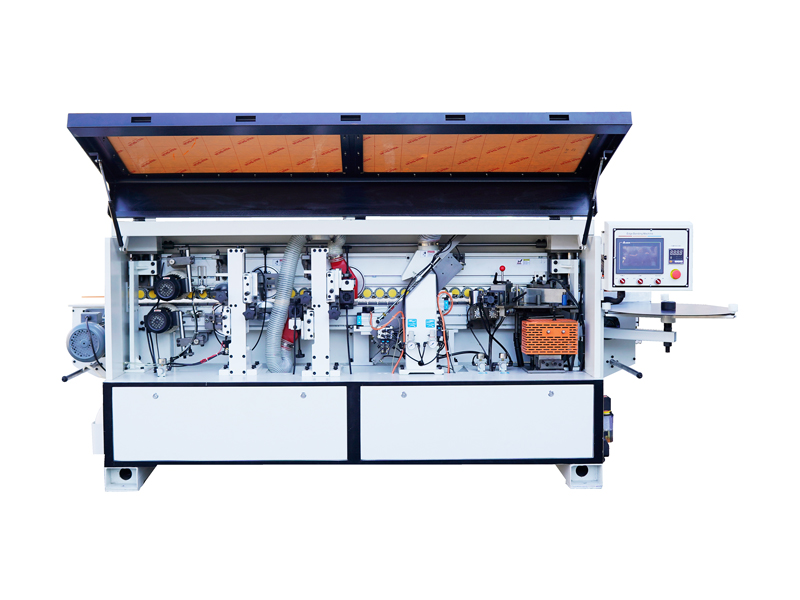

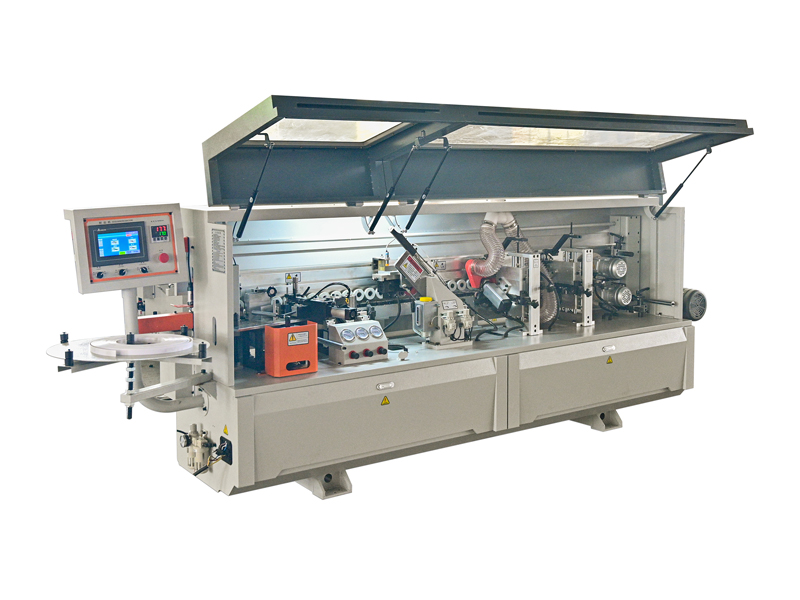

DM-468 Automatic Edge Banding Machine
DM-468 Automatic Edge Banding Machine
Function introduction:
Gluing;
End trimming;
Rough trimming;
Fine trimming;
Profiling unit;
Scraping;
Buffing;
Gluing;
End trimming;
Rough trimming;
Fine trimming;
Profiling unit;
Scraping;
Buffing;
Technical parameter:
| Model | DM-468 |
| Motor power | 11.13kw |
| Overall size | 7000×1100×1600mm |
| Feed speed | 12-20m/min |
| Panel thickness | 10-60(mm) |
| Edge thickness | 0.4-3(mm) |
| Panel width | ≥80mm |
| Working pressure | 6kg |
| Weight | 2800kg |
| Configuration Table | |
| Pre-milling | × |
| Gluing | √ |
| End trimming | √ |
| Rough trimming | √ |
| Fine trimming | √ |
| Profiling unit | √ |
| Scraping | √ |
| Buffing | √ |
| Grooving | × |

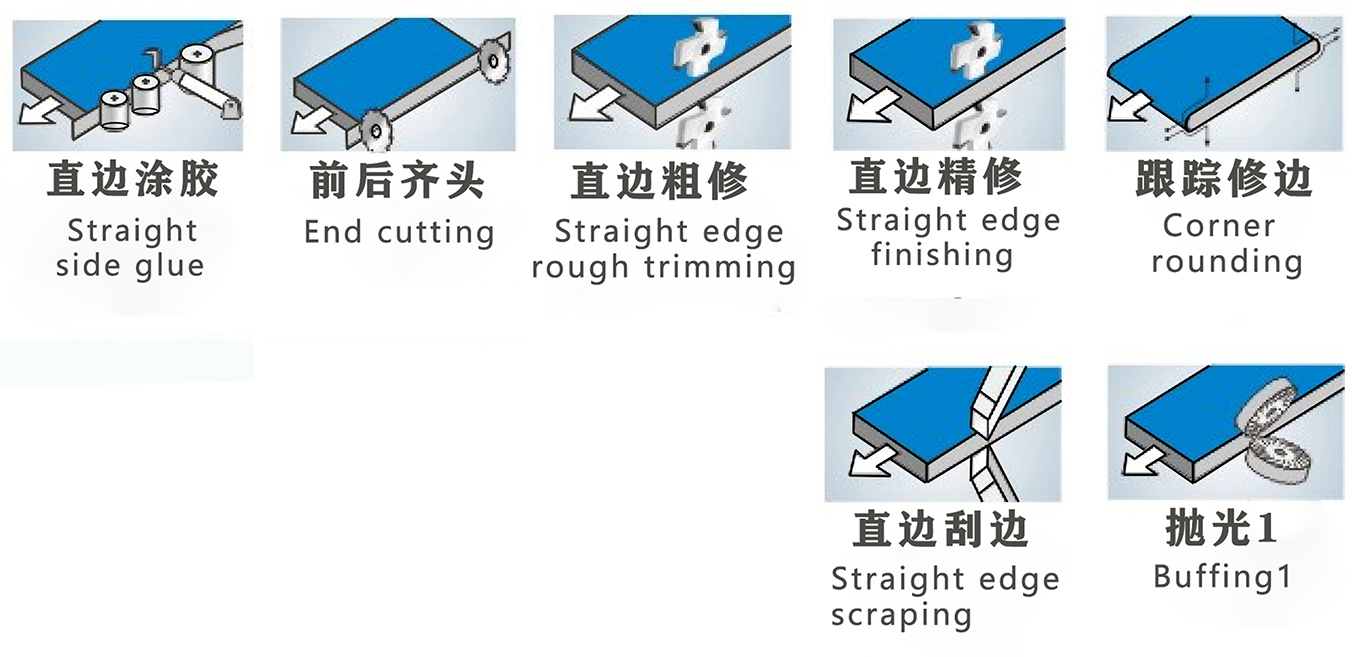

Equipment workflow:
